Cobot Palletizer

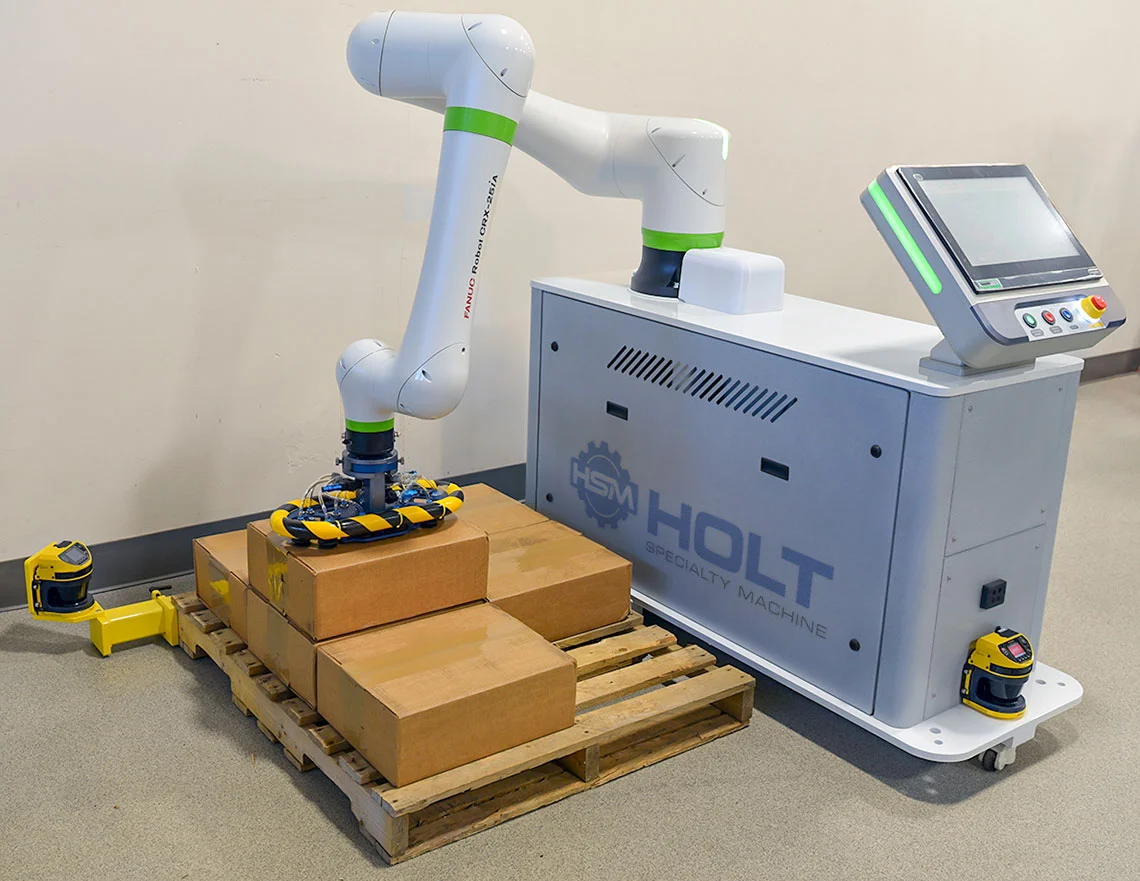

This cobot palletizer, a collaborative robot palletizer, combines safety & efficiency to optimize the traditional palletizing process. Using advanced sensors and a FANUC CRX-25iA precision robotic arm, loads up to 60lbs can be stacked safely around humans.

A minimal footprint with fully customizable solutions make this a great palletizing solution.

Category:Palletizing
Variations:Top down pallet loading.
Push off EOAT
Applications:Tertiary packaging up to 60lbs
Industries:Manufacturing, Pharmaceutical, Cosmetics, Food & Bev, CPG Retail
Custom built cobot palletizer by Holt Specialty Machine.
Category:Palletizing
Variations:Top down pallet loading.
Push off EOAT
Applications:Tertiary packaging up to 60lbs
Industries:Manufacturing, Pharmaceutical, Cosmetics, Food & Bev, CPG Retail
Small footprint with large flexibility, our Cobot Palletizer can safely share operator workspace.

Systems Specs

Rate

Up to 20 picks per minute

Payload

25 kg with full reach; 30 kg with limited reach

Reach

Horizontal:
25kg load: 1,889mm
30kg load: 1,756mm
Vertical: 2,819mm

Footprint

11.4 x 6.5ft

Custom Features

Continuous Operation

Constant output with left and right side pallet docking

Industry 4.0 Ready

Secondary PLC connection allows for custom data exchange for plant side metrics and monitoring

Area scanner integrations

CAT 3 / SIL 2

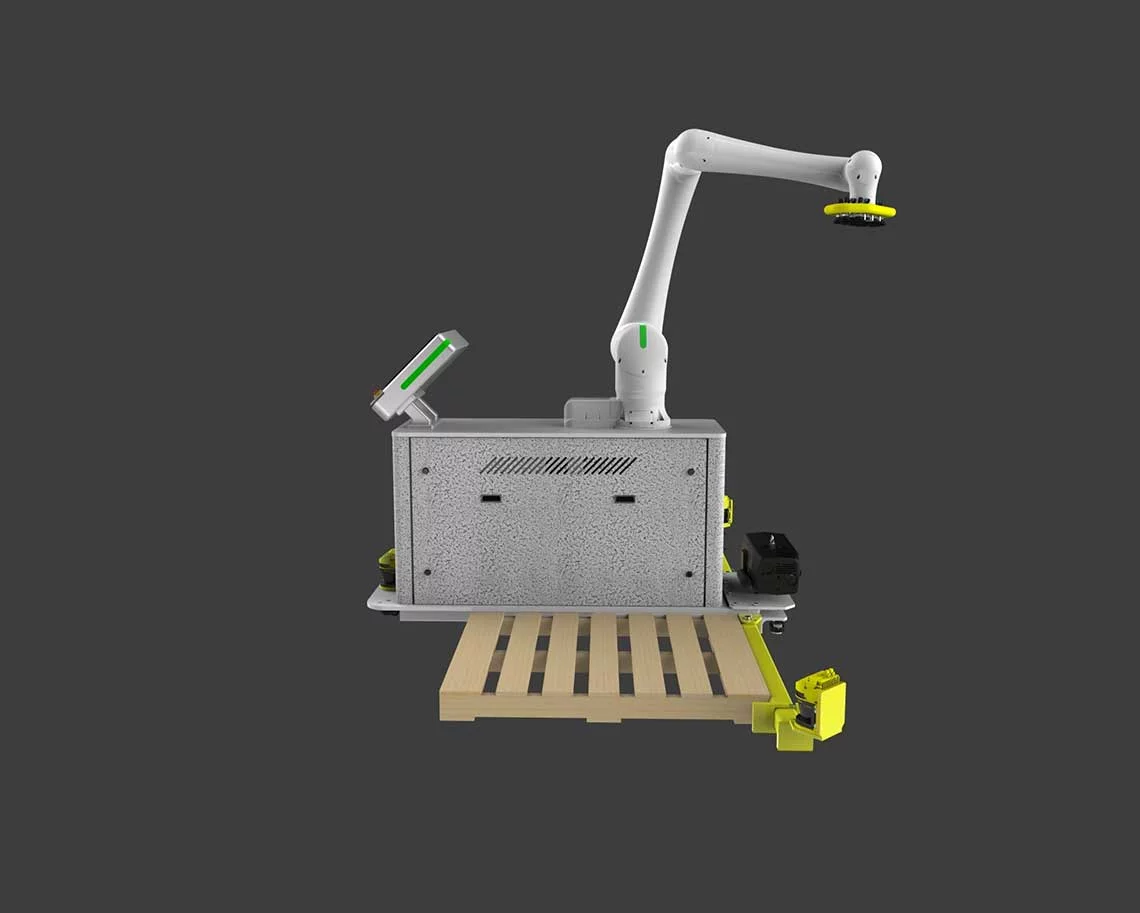

click & drag to rotate

Cobot palletizers utilize cobots to automate the process of stacking boxes, cartons, or other items onto pallets for shipping or storage. These systems typically consist of one or more cobots equipped with specialized end-of-arm tools (EOAT) such as vacuum grippers, clamps, or forks, along with sensors and software for navigation and coordination.

Cobot palletizers are increasingly being adopted in industries such as food and beverage, consumer goods, logistics, and manufacturing, where there is a need for flexible, cost-effective, and safe palletizing solutions. They offer benefits such as increased productivity, improved ergonomics, reduced labor costs, and enhanced workplace safety.
